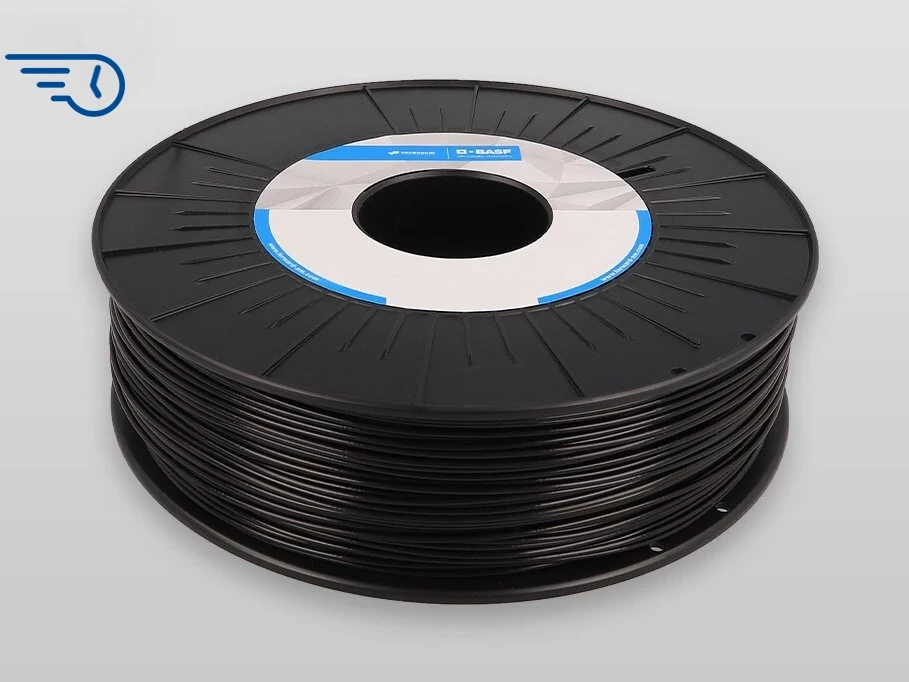

Name: Ultrafuse® PET (2.85mm)
SKU: R3D_FAM_PET
Availability: InStock

Description

For outstanding printing results

Made from a premium PET, easy to print and a large operating window for printing. (Temperature vs. speed)

Ultrafuse PET is made from a premium PET and prints as easy as PLA, but is much stronger. The filament has a large operating window for printing (temperature vs. speed), so it can be used on every 3D-printer. PET will give you outstanding printing results: a good layer adhesion, a high resolution and it is easy to handle. Ultrafuse PET can be 100% recycled, is watertight and has great colors and finish.

Ultrafuse® PET is based on food-safe raw materials (granulate), which are suitable for food contact applications according to the European Plastics Regulation. Further, this material is evaluated for Food-Safe 3D printed applications and meets the requirements according to LFGB and Regulation (EC) No. 1935/2004. To learn more, read the full article regarding Food-Safe 3D Printing Applications here.

Sustainability check for Ultrafuse PET that is sold by Reach 3D

Material Details:

Technical Data Sheet: EN, FR, ES, DE, ZH

Safety Data Sheet: EN, Other Languages

Printing Profiles

Benefits at a Glance

Watertight prints possible
Easy to print like PLA
Premium food-approved raw material
Good layer adhesion
Easy to handle

Example Applications

Jigs & fixtures
Automotive parts
Prototyping

Material Properties

Tensile Strength (MPa): 17.2 (ZX), 33.4 (XY)
Flexural Modulus (MPa): 1826 (ZX), 1840 (XZ), 2063 (XY)
Elongation at Break: 1.1 % (ZX), 2.7 % (XY)
Impact Strength Izod notched (kJ/m2): 1.8 (ZX), 1.9 (XZ), 2.1 (XY)
Impact Strength Izod unnotched (kJ/m2): 4.1 (ZX), 7.7 (XZ), 12.3 (XY)
HDT @ 0.45 MPa: 63 ^oC

Printing Guidelines*

Nozzle Temperature: 210-230 °C
Build Chamber Temperature: –
Bed Temperature: 60 – 80 °C
Bed Material: Glass
Nozzle Diameter: ≥ 0.4 mm
Print Speed: 40-150^** mm / s

^*The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.

^**To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.4mm nozzle and 0.2mm layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.

Additional information

Dimensions	22 × 22 × 7 cm
Diameter	1.75mm, 2.85mm
Weight	750g, 2500, 4500g, 8500g
Color	White, Black, Natural, Red, Blue, Yellow, Green, Orange, Grey, Natural Blue
